Breytihné 90° JIC/BSP

Galvaniseraður háþrýstifittings með 37° flerkón í enda (JIC).

Description

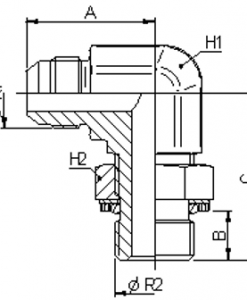

Vöruheiti	Lengd A mm	Lengd B mm	Lengd C mm	Lykilmál H1	Lykilmál H2	Gengjur JIC R1	Gengjur BSP R2	Vörunúmer
Breytihné 7/16"JICx1/8"BSP	22.5	6.3	26.5	11	14	7/16	1/8	GS63100402
Breytihné 7/16"JICx1/4"BSP	27	9.5	32	14	19	7/16	1/4	GS63100404
Breytihné 7/16"JICx3/8"BSP	29	9.5	37	19	22	7/16	3/8
Breytihné 1/2"JICx1/8"BSP	25	6.3	26.5	14	14	1/2	1/8
Breytihné 1/2"JICx1/4"BSP	27	9.5	33	14	19	1/2	1/4	GS63100506
Breytihné 1/2"JICx3/8"BSP	29.5	9.5	37	19	22	1/2	3/8
Breytihné 9/16"JICx1/8"BSP	27	6.3	28.6	14	14	9/16	1/8
Breytihné 9/16"JICx1/4"BSP	27	9.5	33	14	19	9/16	1/4	GS63100604
Breytihné 9/16"JICx3/8"BSP	29	9.5	37	19	22	9/16	3/8	GS63100606
Breytihné 9/16"JICx1/2"BSP	32	13	44	22	27	9/16	1/2	GS63100608
Breytihné 9/16"JICx3/4"BSP	35	13	49.5	27	36	9/16	3/4
Breytihné 3/4"JICx1/4"BSP	32	9.5	37	19	19	3/4	1/4	GS63100804
Breytihné 3/4"JICx3/8"BSP	32	9.5	37	19	22	3/4	3/8	GS63100806
Breytihné 3/4"JICx1/2"BSP	33.7	13	44	22	27	3/4	1/2	GS63100808
Breytihné 3/4"JICx3/4"BSP	37	13	49.5	27	36	3/4	3/4	GS63100812
Breytihné 7/8"JICx3/8"BSP	37	9.5	41	22	22	7/8	3/8	GS63101006
Breytihné 7/8"JICx1/2"BSP	37	13	44	22	27	7/8	1/2	GS63101008
Breytihné 7/8"JICx3/4"BSP	37	13	49.5	27	36	7/8	3/4	GS63101012
Breytihné 1-1/16"JICx1/2"BSP	42	13	48	27	27	1 1/16	1/2	GS63101208
Breytihné 1-1/16"JICx3/4"BSP	42	13	49.5	27	36	1 1/16	3/4	GS63101212
Breytihné 1-1/16"JICx1"BSP	46	16	54	33	41	1 1/16	1	GS63101216
Breytihné 1-5/16"JICx3/4"BSP	46	13	52	33	36	1 5/16	3/4	GS63101612
Breytihné 1-5/16"JICx1"BSP	46	16	54	33	41	1 5/16	1	GS63101616
Breytihné 1-5/16"JICx1-1/4"BSP	52.5	16	57	41	50	1 5/16	1 1/4	GS63101620
Breytihné 1-5/8"JICx1"BSP	52.5	16	59.5	41	41	1 5/8	1	GS63102016
Breytihné 1-5/8"JICx1-1/4"BSP	52.5	16	57	41	50	1 5/8	1 1/4	GS63102020
Breytihné 1-7/8"JICx1-1/4"BSP	59	16	63.5	48	55	1 7/8	1 1/4	GS63102420
Breytihné 1-7/8"JICx1-1/2"BSP	59	16	63.5	48	55	1 7/8	1 1/2	GS63102424
